Feature Set

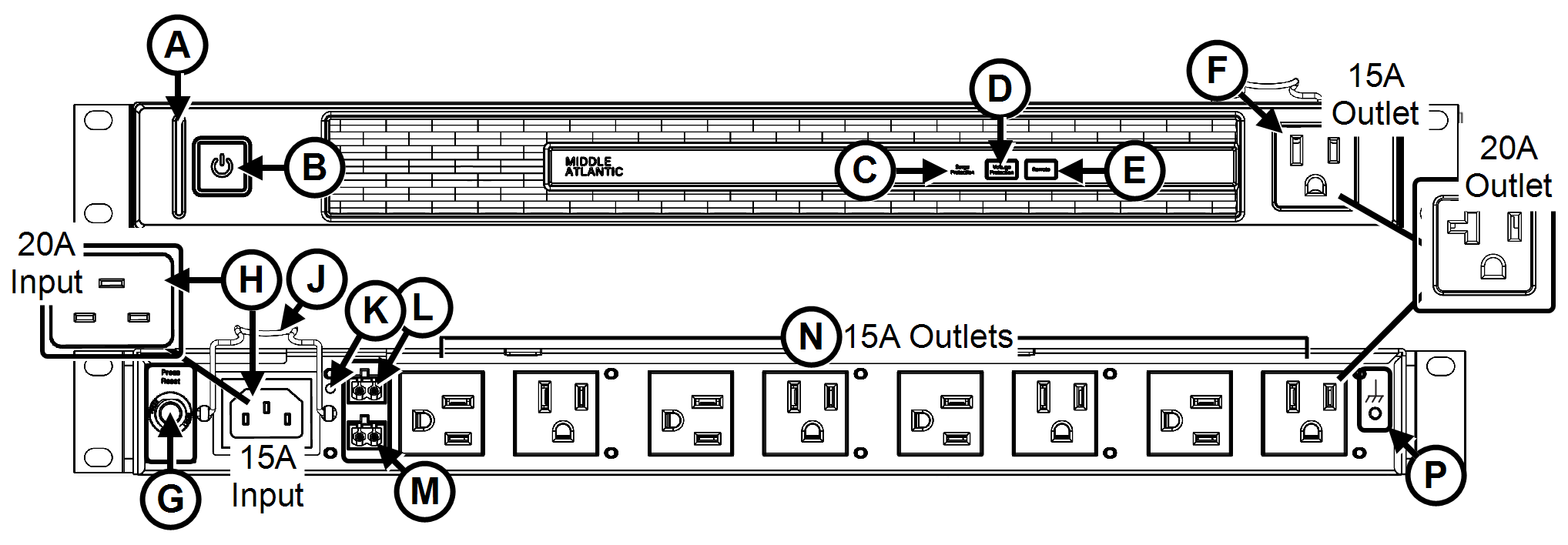

Image showing letter callouts labeling the Feature Set and Operation explanations that follow.

(Click or tap to expand image.)

  1. Light Well

    • White: On, indicating power to the outlets.

    • Off: Off, no power to the outlets.

  2. Power Button

    • White: On

    • Amber: Off

  3. Surge LED Indicator

    Surge indicator signals different protection statuses of your PDU. For more information, see LED Protection Indicators.

  4. Voltage Protection LED Indicator and Button

    Voltage indicator signals different PDU protection statuses. For more information, see LED Protection Indicators.

    Press to enable or disable voltage protection.

    • White: Voltage protection enabled.

    • Off: Voltage protection disabled.

  5. Remote LED Indicator and Button

    Press to enable or disable remote contact control.

    • White: Remote Enabled

    • Off: Remote Disabled

  6. Convenience Outlet

    Additional surge protected outlet on front of unit.

  7. Input Circuit Breaker

    Located next to the AC input, the input circuit breaker trips when the load exceeds the PDU power rating.

  8. AC Input

    IEC14 (for 15A) or IEC20 (for 20A) inlet based on the model purchased.

  1. AC Input Retainer Clip

    Use clip to secure the power cord into the IEC Inlet.

  2. Indicator Light

    Green LED indicates power to the outlets.

  3. Status (Output)

    NOTE Icon

    NOTE

    Terminal Block plug pre-installed on PDU.

    • For MOV Models: When contact is open, indicates the surge status is protected. When contact is closed, indicates the surge is compromised and no longer protected.

    • For Series Protection Models: When contact is open, indicates the unit is powered Off. When the contact is closed, indicates the unit is powered on.

  4. Remote (Input)

    NOTE Icon

    NOTE

    Terminal Block plug with jumper pre-installed on PDU.

    When enabled, outlets may be turned On or Off via contact closure.

    • When contact is closed, the outlets are turned On.

    • When contact is opened, the outlets are turned Off.

  5. Outlets

    All outlets controllable by power button and remote contact.

  1. External Grounding and Bonding Stud

    For connecting an external ground wire to bond the chassis.
