Supplied Components and Hardware
After carefully opening all product packaging, identify the supplied components and hardware shown. If any pieces are missing or damaged, please report it immediately to Technical Support at av.middleatlantic.techsupport@legrand.com or (866) 977-3901. Keep the original packaging in a safe place for future use.
Power Distribution Unit (PDU)
NOTE: Form factor and outlet type vary based on model purchased. For data about your specific model, see the following note.
A
|
|
NOTE |
|
Rackmount Models
The following items are also included with your PDU.
|
Ferrite
B |
Power Cord NOTE: Cord provided varies based on model purchased.
C |
Quick Start Guide |
|
|
NOTE |
To order more hardware, contact support at av.middleatlantic.techsupport@legrand.com or (866) 977-3901 |
Half-Rack Models
The following items are also included with your PDU.
|

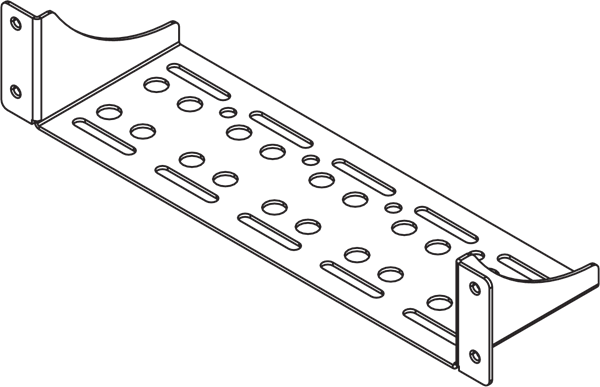

Vertical Bracket
D |
(5x) 10-32 x ½” Phillips Screw
E |
|
(5x) 10-32 x ⅜” Phillips Screw
F |
(5x) 10-32 Oval Nut
G |
Ferrite
B |
|
Power Cord NOTE: Cord provided varies based on model purchased.
C
|
Quick Start Guide |
|
|
NOTE |
To order more hardware, contact support at av.middleatlantic.techsupport@legrand.com or (866) 977-3901 |
Vertical Models
The following items are also included with your PDU.
|

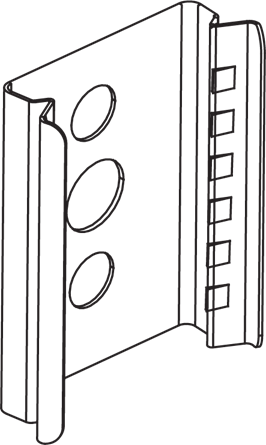

(4x) Mounting Clip
H |
(4x) 10-32 Oval Nut
G |
(4x) 10-32 x ½” Phillips Screw
E |
|
Ferrite
B |
Power Cord NOTE: Cord provided varies based on model purchased.
C |
Quick Start Guide |
|
|
NOTE |
To order more hardware, contact support at av.middleatlantic.techsupport@legrand.com or (866) 977-3901 |
Compact Models
The following items are also included with your PDU.
|

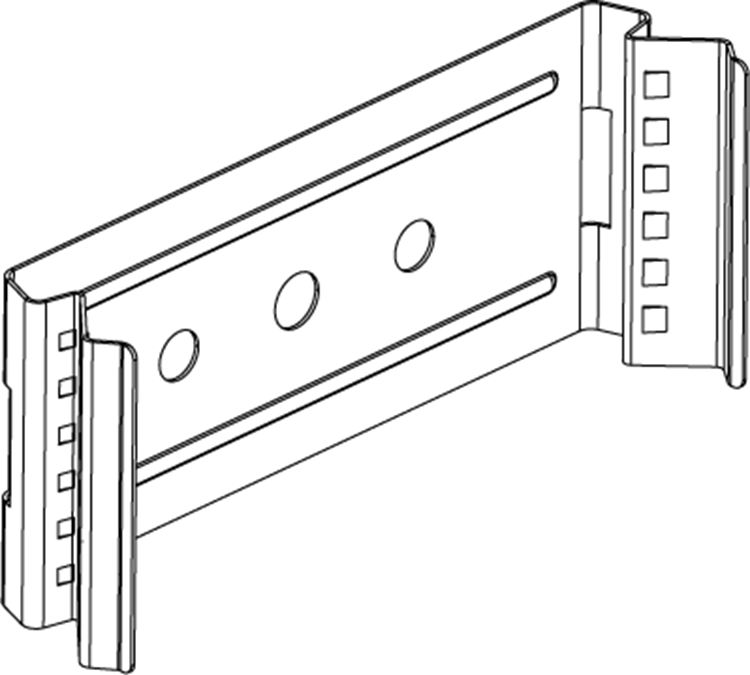

(4x) Mounting Clip
J |
(2x) 10-32 Oval Nut
G |
(2x) 10-32 x ½” Phillips Screw
E |
|
(2x) 10-12 Drywall Anchors
K |

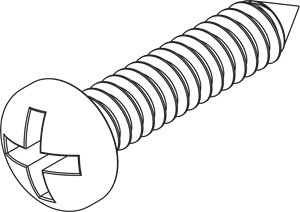

(2x) #10 x 1” Phillips Screw
L |
Ferrite
B |
|
Power Cord NOTE: Cord provided varies based on model purchased.
C
|
Quick Start Guide |
|
|
NOTE |
To order more hardware, contact support at av.middleatlantic.techsupport@legrand.com or (866) 977-3901 |
