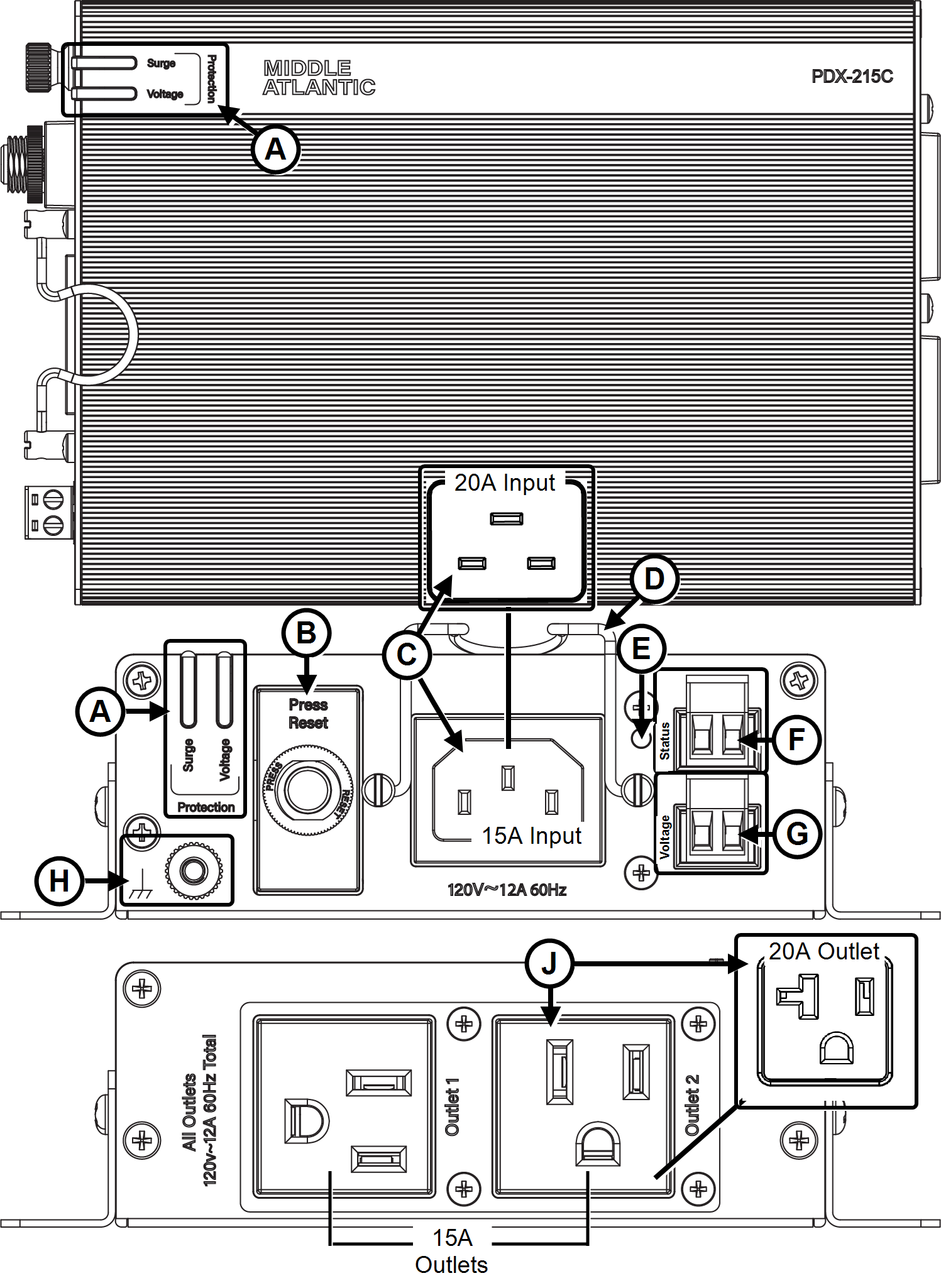

Feature Set

(Click or tap to expand image.)

1. LED Protection Indicators

   Surge and Voltage indicators signal the different PDU protection statuses. For more information, see LED Protection Indicators.

2. Input Circuit Breaker

   Located next to the AC input, the input circuit breaker trips when the load exceeds the PDU power rating.

3. AC Input

   IEC14 (for 15A) or IEC20 (for 20A) inlet based on the model purchased.

4. AC Input Retainer Clip

   Use clip to secure the power cord into the IEC Inlet.

5. Indicator Light

   Green LED indicates power to the outlets.

6. Status (Output)

   NOTE

   Terminal Block plug pre-installed on PDU.

   • For MOV Models: When contact is open, indicates the surge status is protected. When contact is closed, indicates the surge is compromised and no longer protected.

   • For Series Protection Models: When contact is open, indicates the unit is powered Off. When the contact is closed, indicates the unit is powered On.

7. Voltage (Input)

   NOTE

   Terminal Block plug pre-installed on PDU.

   Enable or Disable voltage protection via contact closure as follows.

   • When contact is opened, voltage protection is enabled.

   • When contact is closed, voltage protection is disabled.

8. External Grounding and Bonding Stud

   For connecting an external ground wire to bond the chassis.

10. Outlets

    Surge protected outlets.
